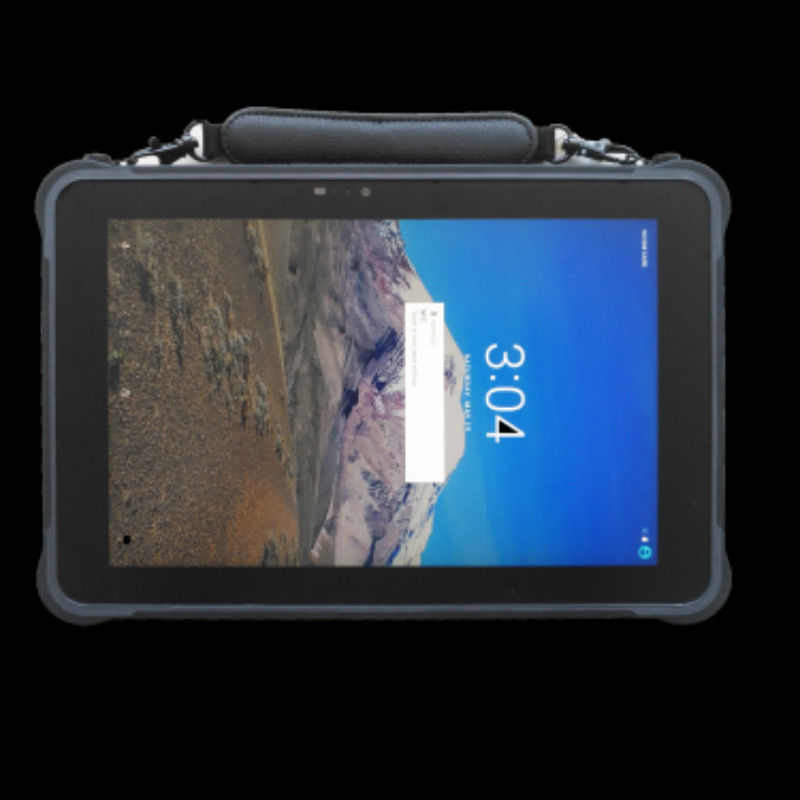

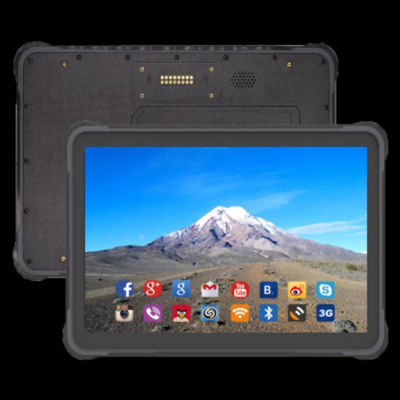

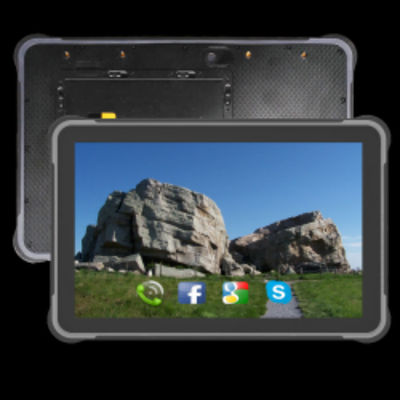

CE Rugged Tablet Windows 10 Pro

Product Description

10.1'' IP65 Rugged Tablet Windows 10 Pro with Fingerprint 865-868MHz or 902-928MHz long distance UHF reader T11W



Product Feature:



1. support high strength Glass Touch Panel；10.1 inch1920*1080;500 nits;10 point touch

2. Support Wrist Strap,arm strap,belt strap



3. Supoort UHF reader 865-868MHz or 902-928MHz Option



4. Support big battery :3.8V/7800mAh



5.  Support multi I/O Port : 1.USB*2 ;2. Micro USB*1 ;3. RJ45*1;4. bottom pogopin*1, USB and serial

                                          5. back pogopin*1;6. DC*1 3.5*1.35;7. microphone+earphone;8. HDMI;9.RS232*1









Product Specification:





Rugged Tablet T11W
Display	10.1 inch1920*1080;500 nits;10 point touch
Platform	intel cherry trail Z8350
OS	Windows 10 IOT/Home/Pro optional
RAM	4GB
ROM	64GB
Camera	Front 2.0MP,Rear 5.0MP
Network	WIFI 802.11a b c, g,n 2.4G, 5G Bluetooth BT4.0 beidou,GPS, glonass 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC
I/O Port	1.USB*2 ; 2. Micro USB*1 ; 3. RJ45*1; 4. bottom pogopin*1, USB and serial 5. back pogopin*1; 6. DC*1 3.5*1.35; 7. microphone+earphone; 8. HDMI; 9.RS232*1
Battery	3.8V/8400mAh,hotswap, 2100mAh backup power
Dimension	275*178*18mm
Certification	IP65,CE,FCC
NFC Option	13.56 MHz, under the screen, the distance is 3-5cm
Option Functions	13.56MHz NFC RFID reader; 2D honeywell N3680 scanner; UHF:865-868MHz or 902-928MHz; fingerprint; high precision GPS
Optional accessories	Docking charger/handstrap/car holder





Product Show:









Rugline Technology Co., Ltd was established in 2014, a subsidiary currently with over 200 employees of Rugline,

the domestic high-tech R&D company of rugged tablets and notebook, and also the biggest domestic IDH of industry

terminal and customization. The Rugline with the strategy of Research & Production & Promotion Integration,

has set up the professional rugged products manufacturing workshop with well-equipped production line,

the office work space in 3500 square meters, and also the laboratory in 300 square meters, which effectively combines

and links the resources of research, quality, production and sales into great cooperation, further improves the product

performance and quality, and ensures the timely delivery.Rugline basing on the sustainable development of industry's

terminal technology, independently proceeds the R&D of fully rugged product series, including rugged PDA (4"/5"/6"),

rugged tablet (7"/8"/10"/11.6"/12.2"), rugged and semi-rugged notebook 11.6"/12.2"/14"/15.6"), with IP grade in 65 ~ 68,

US military shock-proof standard MIL-STD-810G, and also with technologies in 2G / 3G / 4G/5G, dual Wi-Fi,

Bluetooth 4.2/5.0, Beidou / GPS, NFC,Fingerprint,HF/LF/UHF RFID reader&writer one-dimensional code / two-dimensional

code scanning, ID and fingerprints recognition. And also Rugline provides a variety of accessories in order to meet

customers' demands in various industries such as aviation, aerospace, automobile, police, education, exploration, fishing,

animal husbandry, finance and so on.Rugline has also launched commercial display terminal, industrial PC box, POS

machines and other individualization products, and provides solutions of network digital signage with HW & SW integration

via Microsoft cloud data and cloud computing platform, which are widely applied in life, office, education, logistics,

automotive, finance, business, smart home and other related industries.Rugline can also provide customers with industrial

design, mould development, HW and SW development, mechanical design, technical support and other customized,

integrated solutions to help customers to achieve success in digital community.
